UV-C Coil Cleaning for HVAC Systems
Cleaner coils. Lower energy waste. Healthier air from the source.
Fighter Flex uses germicidal UV-C light to continuously treat HVAC and air handler coils, helping prevent the buildup of mold, fungi, bacteria, and biofilm that forces systems to work harder and can degrade indoor air quality throughout a facility.

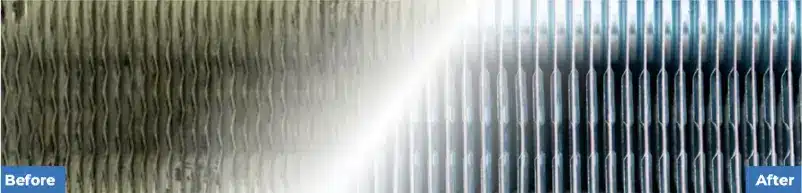

Cleaner HVAC coils help support airflow, system efficiency, and improved indoor air quality across commercial environments.
01
Helps keep coils cleaner
02
Reduces manual cleaning
03
Supports better IAQ
By treating the coil area continuously, Fighter Flex helps address contamination where moisture and organic buildup commonly develop, inside the HVAC system itself. The result is a more sustainable approach to coil hygiene, system performance, and facility-wide air quality.

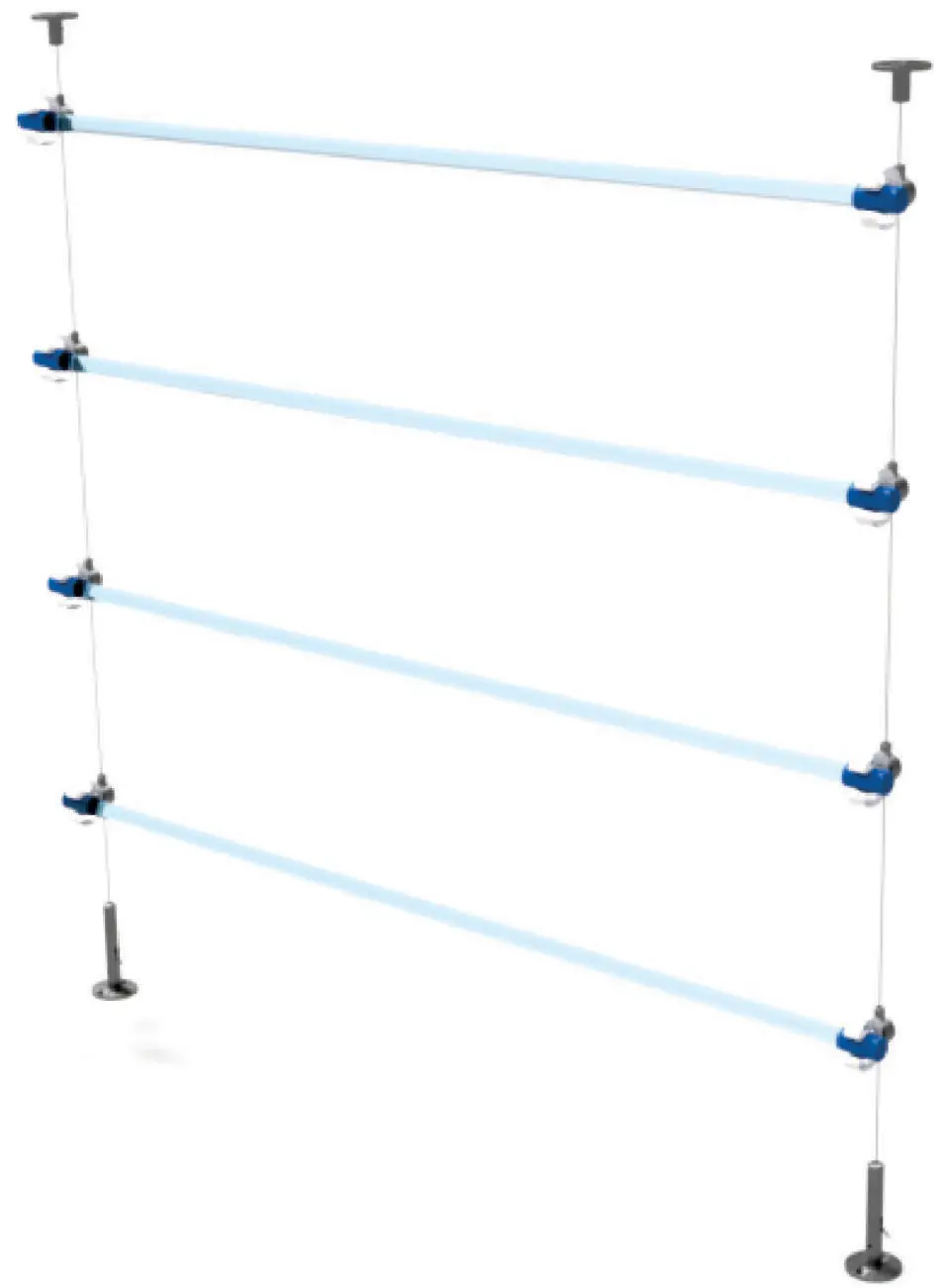

Flexible aerospace cable design
Fighter Flex is engineered with lightweight, flexible aerospace cable that simplifies installation in air handlers and HVAC coil environments. The snap-in connector design reduces complexity while supporting fast deployment across commercial systems.
Designed for air handlers, coils, and commercial HVAC environments
Long-life UV-C lamps help improve return on investment
Supports cleaner airflow in healthcare, hospitality, education, retail, perishables, and industrial facilities
Airocide Fighter Flex for HVAC
Airocide Fighter Flex for HVAC
Germicidal UVC kit for HVAC and AHU’s eliminates biofilms on coils and condensation pans, reducing energy costs and improving IAQ by eliminating airborne pathogens and mold generated by dirty coils. Flexible aerospace cable system for easy installation. Modular design. Lightweight: inexpensive to ship.
| Length (PAL-SL-60) | 596.9 mm (23.5 in.) |
|---|---|
| Length (PAL-SL-90) | 850.9 mm (33.5 in.) |
| Length (PAL-SL-120) | 1193.8 mm (47 in.) |
| Weight (PAL-SL-60) | 74.843 kg (.165 lbs) |
| Weight (PAL-SL-90) | 0.0997 kg (.22 lbs) |
| Weight (PAL-SL-120) | 0.0997 kg (.33 lbs) |
| Max Current | 0.5 Amp |
| Hertz | 50/60 Hz |
| Watts | 60w, 90w, 120w |
| Lamps | High intensity 254nm UV-C |
| Maintenance | 12 month Lamp Replacment (replacement kits available) |
Replacement Lamps and Compatibility
The Fighter Flex system supports multiple lamp configurations depending on your installation requirements.
- 40W Linear Lamp – 357mm
- 60W Linear Lamp – 609mm
- 80W Linear Lamp – 874mm
- 110W Linear Lamp – 1026mm
- 130W Linear Lamp – 1536mm
Contact our team for compatibility guidance or replacement selection.
How UV HVAC Coil Cleaning Systems Work
Commercial HVAC systems continuously circulate air through coils, drain pans, and air handling components that are exposed to moisture, dust, and organic particles. Over time, this environment can contribute to microbial buildup on HVAC coils, including mold, bacteria, and biofilm that impact airflow and system performance.

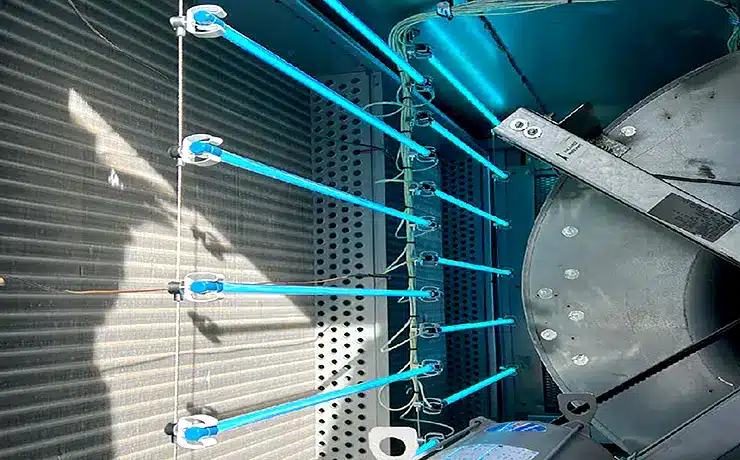

A UV HVAC coil cleaning system uses germicidal UV-C light positioned directly at the evaporator coil and other high-moisture areas within the air handling unit. Continuous UV exposure helps reduce microbial growth on coil surfaces before buildup becomes severe.
Unlike periodic manual cleanings alone, HVAC UV light systems operate continuously while the HVAC system is running. This helps support cleaner coils, improved heat transfer, more consistent airflow, and improved indoor air quality throughout the facility.
The Fighter Flex commercial HVAC UV system is designed for installation within air handlers, fan coil units, and commercial HVAC environments where long-term coil cleanliness and indoor air quality are priorities.
Fighter Flex Installation Assessment
See How an Air Handler Is Evaluated for Fighter Flex Installation
Before recommending a Fighter Flex configuration, the Airocide team evaluates the air handler layout, coil access, available mounting areas, and service environment. This walkthrough shows what an installation assessment looks like and helps facility managers, HVAC contractors, and building operators understand how Fighter Flex can be applied inside commercial HVAC systems.
- See what matters during an air handler review
- Understand how coil access and lamp placement are evaluated
- Learn when Fighter Flex is a fit for commercial HVAC systems
Watch how an air handler is reviewed for Fighter Flex UV-C installation considerations.
Watch how Fighter Flex supports cleaner HVAC coils and improved system performance in commercial air handling environments.
Fighter Flex Product Overview
See Fighter Flex UV-C Technology in Action
Fighter Flex is designed to help keep HVAC coils cleaner by applying UV-C technology directly where moisture, organic buildup, and microbial growth commonly develop. This video provides a closer look at how the system supports coil cleanliness, airflow, energy efficiency, and long-term HVAC performance.
- See how Fighter Flex supports cleaner HVAC coil surfaces
- Understand the role of UV-C technology inside air handling systems
- Learn why coil cleanliness matters for airflow, efficiency, and equipment life
Benefits of UV HVAC Coil Cleaning Systems
Commercial HVAC UV systems are used in facilities where indoor air quality, HVAC efficiency, and long-term equipment performance are critical. By helping reduce microbial buildup on HVAC coils, UV-C systems support cleaner operation throughout the air handling system.
- Helps reduce mold and microbial growth on HVAC coils
- Supports improved airflow and heat transfer efficiency
- Helps maintain cleaner evaporator coils and drain pans
- Can reduce HVAC maintenance frequency and coil cleaning requirements
- Supports improved indoor air quality in occupied spaces
- Helps improve long-term HVAC system performance
- Designed for continuous operation within commercial HVAC systems
Applications for Commercial HVAC UV Systems
UV HVAC coil cleaning systems are used across multiple industries where indoor air quality, microbial control, and HVAC performance are important operational priorities.
Healthcare Facilities
Hospitals, clinics, and healthcare environments often require additional indoor air quality measures to support cleaner HVAC operation and help reduce airborne contaminants throughout occupied spaces.
Schools and Educational Facilities
Schools and universities use commercial HVAC UV systems to help support healthier learning environments, reduce microbial buildup within HVAC systems, and improve overall air circulation performance.
Commercial Buildings
Office buildings, retail environments, hospitality properties, and commercial facilities use HVAC UV light systems to support cleaner coils, improve HVAC efficiency, and reduce maintenance-related disruptions.
Data Centers and Critical Facilities
Data centers and mission-critical facilities often prioritize HVAC reliability and system performance. UV HVAC coil cleaning systems help maintain cleaner air handling components in environments where cooling stability is essential.
Frequently Asked Questions About UV HVAC Coil Cleaning
What is a UV HVAC coil cleaning system?
A UV HVAC coil cleaning system uses germicidal UV-C light installed near HVAC coils to help reduce mold, bacteria, and microbial buildup on coil surfaces inside commercial HVAC systems.
How does UV light clean HVAC coils?
UV-C light helps disrupt microbial growth on evaporator coils and other HVAC components exposed to moisture. Continuous UV exposure helps reduce buildup that can impact airflow and system efficiency.
Can UV HVAC coil cleaning improve energy efficiency?
Cleaner HVAC coils can support improved heat transfer and airflow, which may help commercial HVAC systems operate more efficiently over time.
Does UV light help prevent mold on HVAC coils?
Yes. UV-C systems are commonly used to help reduce mold and microbial growth on HVAC coils, drain pans, and air handling components where moisture is present.
Where are HVAC UV light systems installed?
Commercial HVAC UV systems are typically installed near evaporator coils, inside air handlers, fan coil units, or within other HVAC components where microbial buildup commonly occurs.
Is UV HVAC coil cleaning a replacement for routine maintenance?
No. UV HVAC systems support coil cleanliness and microbial control, but they should be used alongside routine HVAC inspection and maintenance programs.
Request a Commercial HVAC UV Assessment
Learn how the Fighter Flex commercial HVAC UV system can help support cleaner coils, improved indoor air quality, and long-term HVAC performance within your facility.
Contact the Airocide Systems team to discuss commercial HVAC applications, installation environments, and system recommendations for your building.
